Compression fittings deliver a dependable method to join copper pipes, removing the need for welded joints or solder work. Both seasoned plumbers and home repairers rely on these connectors for fast repairs and installations. A typical assembly uses a fitting body, a compression ring or ferrule, and a compression nut. This nut tightens against the ferrule, creating a secure seal.
1/2 T Fitting
For a reliable installation, follow several critical fitting practices. Start by making square cuts and deburring the tube end. Then look over the tube end for scratches, distortion, or other damage. After assembly, hand-tighten the nut before using a wrench for final tightening. Use two wrenches so the fitting body is held steady and the pipe does not twist. Remember, avoid overtightening and never reuse a compressed ferrule to support a leak-free joint.
In many jobs, compression fittings are chosen instead of soldered connections. They avoid open flame work and may be reusable in certain low-stress situations. Their ease of installation in tight spaces is a valuable advantage. Yet, they are larger and may not be suitable for high-stress areas or where inspection is difficult. For best results, use matched parts and follow the manufacturer’s torque or turn-count instructions.
- Copper tubing can be connected with compression fittings without soldering or open flame.
- Main parts: fitting body, ferrule olive, and compression nut.
- For dependable seals, make straight cuts and deburr the tube end.
- Use two wrenches and avoid overtightening to prevent leaks.
- Choose brass or compatible materials and follow manufacturer guidance.
Compression Fittings Explained
Compression fittings connect tubing without solder or heat. They use a basic threaded connection. This connection compresses a ring against the pipe to form a seal. They are especially valuable in confined areas and field repairs where a fast, dependable connection is needed.
Main Components
The main pieces are the fitting body, the olive, and the compression nut. The fitting body provides both the seating area and the threads. The ferrule, also called an olive, is positioned between the compression nut and the pipe. When the compression nut threads onto the body, it drives the ferrule into position.
Compression Sealing Principle
Sealing happens by radial compression. As the compression nut tightens, the ferrule moves axially into the tapered bore of the body. That movement causes the ferrule to deform slightly and press against the outside diameter of the tubing.
The result is a line-contact seal that holds the tube and prevents leaks. The ferrule’s shape and material have a direct effect on seal performance when pressure or temperature changes.
Common Industry Names And Variations
Different trades use varied terms for the same idea. In plumbing supply and HVAC catalogs, terms such as compression joint, compression couplings, and compression nut are common. In instrumentation work, vendors list compression joints and compression fittings plumbing alongside flare and push-fit options.
| Name | Usual Application | Primary Detail |
|---|---|---|
| Compression nut | Domestic plumbing and gas runs | Threaded tightening to compress ferrule |
| Compression ring | Instrumentation and mechanical service lines | Deforms to seal and grip tubing |
| Compression connection | Service repairs and pipe connections | No-solder joint often serviceable later |
| Compression couplings | Pipe extensions and joins | Two-ended compression seal |
| Compression plumbing fittings | Home and commercial water systems | Many materials, shapes, and sizes |
Copper Tube Compression Fitting Guide
The choice of material for a compression joint is critical. It impacts performance, durability, and the risk of corrosion. Copper fittings are often a good match for copper tubing. Their similar thermal expansion characteristics help maintain consistent metal contact.
Brass compression fittings, on the other hand, bring ductility. This characteristic supports in forming reliable seals without damaging the tubing.
For high-pressure or high-temperature service, stainless steel compression fittings are often ideal. They also resist many aggressive fluids. Plastic compression fittings may be suitable for low-pressure household water lines. They eliminate metal-to-metal contact, which can cause dissimilar-metal issues.
It is essential to match materials to the application, pressure, and fluid type. In refrigeration and many plumbing uses, copper or brass parts are often preferred. They reduce mixed-metal stress. When high mechanical strength is required, stainless steel is often the better choice. Just remember, its harder ferrules can deform soft tubing if not sized correctly.
With copper tubing, avoid pairing the line directly with carbon steel or other incompatible metals. Galvanic corrosion can severely accelerate deterioration at the junction. This reduces the service life. When mixed metals cannot be avoided, use dielectric unions, insulating sleeves, or compatible transition materials to reduce electrical contact.
Before assembling, inspect the tubing’s finish and wall rigidity. A proper surface quality ensures ferrules bite evenly and form a lasting seal. Always follow the manufacturer’s guidance for material compatibility. Following that guidance helps reduce leaks and extend joint life in real-world service.

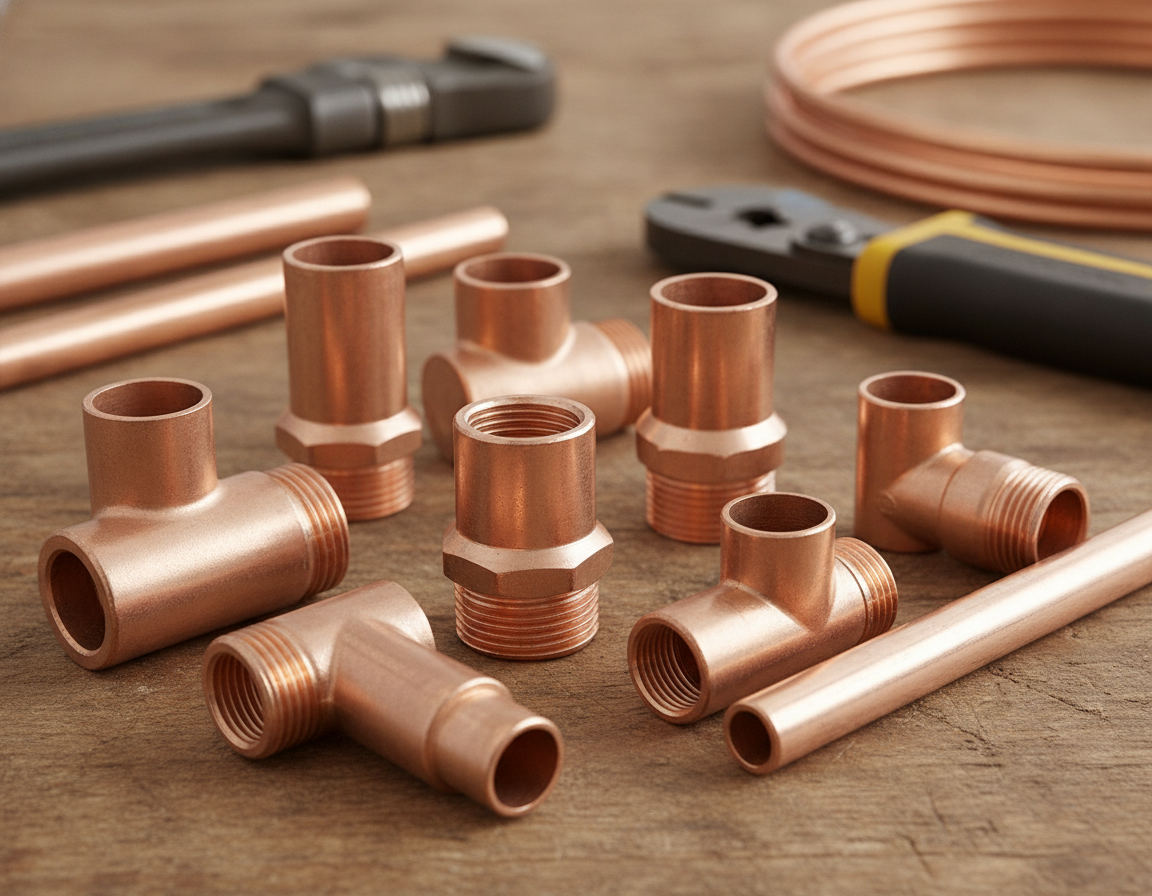

Copper Tubing Compression Tee Sizes And Types
The correct compression tee depends on flow requirements, available space, and tubing size. These fittings are widely used in plumbing, refrigeration, and instrumentation. A proper match between ferrule geometry and body taper is essential for leak prevention.
Variants For Branching And Tight Spaces
Straight tees ensure full flow through three aligned ports. Branch tees route flow into a side line with less abrupt direction change. Compact tees fit into tight spaces where standard tees won’t. They come in common sizes like the Compression Tee 1/2 for residential lines.
Common Size Labels And Cross-Fit Options
Installers commonly choose parts by tube OD or nominal size labels. The 1/4 Compression T Fitting and 1/2 Compression T Fitting are popular. For small-diameter tube runs, the 1 4 Tee is often used. For larger branches, the 1/2 Inch Compression Fitting and 1/2 OD Compression Fitting are common. Cross-fit options such as 1/2 X3/8 and 3/8 X 1/2 Compression Fitting make it possible to mix sizes when required.
Combination Tees And Adapters
Combination tees, such as the 1/2 X 1/2 X 3/8 Tee, handle transitions between sizes. A 1/2 X3/8 adapter changes a 1/2 line to a 3/8 branch. The 1 2 To 1 4 Compression Fitting gives a compact reduction for instrumentation taps, sensors, or small branches.
Choosing Brass Tee And T Joint Fittings
Brass is the preferred material for copper tubing connections due to its corrosion resistance and thermal expansion compatibility. For durable connections, look for T Brass Fitting options. The 1/2 Brass Tee and 1/2 Tee Brass are common choices for main lines and branch runs. Ensure thread pitch and ferrule fit before mixing brands for a proper seal.
| Fitting Type | Typical Use | Common Size Labels | Material Considerations |
|---|---|---|---|
| Straight Tee | Main run with branch inline | Compression Tee 1/2 or 1 4 Tee | Brass is commonly preferred with copper tube |
| Side Tee | Side outlet from main pipe | 1/2 Compression T Fitting, 1/4 Compression T Fitting | Match ferrules with fitting bodies |
| Compact Tee | Tight spaces and wall cavities | Common labels include Compression Tee 1/2 | Compact body with the same compression sealing action |
| Reducing Tee | Changing size for branches or sensors | 1/2 X 1/2 X 3/8 Tee, 1/2 X3/8, 3/8 X 1/2 Compression Fitting | Adapter options include 1 2 To 1 4 Compression Fitting |
| T Brass Fitting | Copper tubing systems needing corrosion resistance | 1/2 Brass Tee and T Brass Fitting | Matches copper; check pitch and taper |
When To Use Compression Fittings Vs Soldering Or Other Methods
Choosing the right joint depends on the job’s conditions and the fitting’s capabilities. Compression fittings are ideal for tight spaces and areas near flammable materials, as they don’t require flame. Soldering is often better when a permanent, low-profile, visible installation is desired.
Advantages For Quick Installs And Confined Work
No-flame fittings are practical for emergency repairs and retrofitting, as they remove the need for hot work permits or torches. They only require basic hand tools, making them a go-to for fast fixes. In low-stress systems, limited reuse may be possible, which can help during testing or section replacement.
Profile Limits And Durability Concerns
Compared with soldered joints, compression fittings are bulkier. Ferrules can make it hard to remove fittings, limiting their reusability. Over time, vibration or pulsation can cause fittings to loosen, making soldered or brazed connections more suitable for high-stress applications.
Choosing The Right Method By Application
For plumbing repairs in tight spaces, compression fittings are useful when a no-flame connection is needed. For visible runs where appearance is important, soldering is the better choice.
For gas lines, compression fittings are used for short runs. Always check local codes and use approved materials. Regularly inspect joints to ensure safety.
For HVAC and refrigeration, select copper fittings rated and designed for refrigerants. For heavy thermal cycling, brazed or flare connections may last longer than compression fittings. Compression fittings, like a Compression Tee Fitting or T Compression Fitting, are appropriate for service taps and temporary connections.
For instrumentation, select fittings that provide leak-tight, high-pressure, or high-purity lines. Stainless-steel compression fittings can perform very well, but pressure and media ratings must be confirmed before use.
| Selection Factor | Compression Joint | Solder Or Braze |
|---|---|---|
| Tools Required | Wrenches, minimal tools | Torch, flux, solder or filler |
| Repair Speed | Fast for repairs | More preparation and cooling time |
| Joint Size | Higher bulk | Low profile, neat runs |
| Reuse Potential | Sometimes reusable, but ferrules limit reuse | Cut-out repair usually required |
| Resistance To Vibration | Moderate, with loosening possible | Generally stronger under vibration |
| Common uses | Plumbing, gas lines, quick HVAC fittings, service tees | Low-profile permanent installations |
Match the fitting type to the system’s needs, adhering to pressure, temperature, and material compatibility guidelines. Compression fittings, including Compression Tee Fittings or T Compression Fittings, are useful for plumbing, gas lines, HVAC fittings, and instrumentation when serviceability or a no-flame approach is necessary.
Step-By-Step Installation Best Practices For Reliable Joints
A reliable installation starts with careful preparation and a clear assembly sequence. Every step matters because poor preparation can cause leaks or damage. This guide will outline installing compression fittings on copper tubing and when to seek parts or tools from Installation Parts Supply.
Proper preparation of copper tubing is necessary. Use a tubing cutter to cut it squarely, then remove any burrs with a reamer. Inspect the tube end for any nicks or deformations. Before assembly, clean the tube and inspect the fitting body, nut, and ferrule for damage.
Start by sliding the nut onto the pipe with the threads facing the tube end. Then place the ferrule or olive onto the pipe. Insert the pipe fully into the fitting body, ensuring the ferrule seats correctly. Hand-tighten the nut first, align the assembly, and then use a wrench for final tightening.
Proper tightening is central to a secure compression seal. Use two wrenches to hold the fitting body while tightening the nut. Follow the manufacturer’s instructions for rotation-based turns, not just torque readings. Avoid over-tightening, as it can flatten the ferrule and lead to leaks.
After disassembly, replacement ferrules are often needed. Once an olive or ferrule has been compressed, it should not be reused. If the ferrule is stuck, remove it with a ferrule puller or carefully cut it off without damaging the tube or fitting body.
Plastic tubing usually needs an insert to maintain shape under compression. Copper tubing generally does not require inserts. After reassembly, open the supply slowly and inspect the joint for leaks. If needed, tighten in small measured increments. For compatible parts and detailed specifications, refer to Installation Parts Supply.
Ferrule Design Details That Affect Compression Performance
The choice of ferrule significantly impacts a compression joint’s performance under pressure and over time. Both one-piece and two-piece ferrules have benefits, limitations, and installation considerations. The design of the ferrule must work with the tubing and fitting body to ensure a secure and lasting seal.
Ferrule shapes and materials
Brass and stainless steel are the most common materials for ferrules. For applications requiring chemical resistance or high-temperature tolerance, graphite or specialty alloys are used. A single-piece ferrule is more straightforward to install and works well with softer copper tubing. On the other hand, a two-piece ferrule includes a rear ferrule, preventing rotation and galling, which is essential for stainless systems.
Asymmetrical versus symmetrical ferrules
An asymmetrical ferrule is installed in a specific orientation, supporting consistent performance. It is often preferred for high-reliability applications. In contrast, a symmetrical ferrule can be installed in either direction, making it quicker to assemble. Yet, it may not perform as well on hard plastic tubing, potentially leading to leaks due to varying tubing OD tolerances.
Seal geometry: line-contact versus surface-contact seals
Ferrule shape determines whether the seal is mainly line-contact or surface-contact. Line-contact seals often resist creep and vibration better. Over-tightening can, though, convert a line contact seal into a surface contact, increasing the risk of leakage over time.
Tubing considerations and material behavior
Metal tubing must have smooth walls and precise cuts to allow proper ferrule seating. Copper tubing, even when stored in coils, can have slight irregularities that affect the seal. Soft plastics and PTFE exhibit cold flow and creep under compression, leading to a loss of seal integrity over time.
Soft tubing and PTFE cold-flow mitigations
To counteract PTFE cold flow, consider using tubing inserts or redundant internal O-rings. Hardened ferrules may help distribute load more effectively. In high-pressure or high-purity environments, select materials and lubricants that minimize galling and residue. Ensure that the ferrule material matches the tubing and application requirements to maintain a reliable seal throughout its service life.
Installation Mistakes And Compression Fitting Troubleshooting
When troubleshooting compression fittings, start with the basics: check the nut tightness, tubing alignment, and ferrule condition. Minor leaks often come from under-tightening, poor tube seating, or a mis-seated ferrule. To prevent tubing damage, hold the fitting body with one wrench and tighten the nut with a second wrench.
Problems from overtightening can create pipe deformation, crushed ferrules, and persistent leaks. Too much tightening force can flatten the ferrule or damage copper tubing, producing a weak seal. When tubing is flattened or a ferrule is gouged, cut back the tube and install a new ferrule and nut.
Under-tightening can leave a small gap that allows slow seepage. For small weeps, tighten in small increments with a wrench until the leak stops. Avoid over-tightening by using incremental tightening for a reliable seal.
Misalignment or twisting can keep the ferrule from compressing evenly. Ensure the tubing enters the fitting straight and fully. A misaligned ferrule can become stuck, making removal difficult. To remove a stuck ferrule, use a ferrule puller or cut it off and replace it, being careful not to damage the tubing.
Identifying and fixing leaks involves inspecting the ferrule seating and part condition. Any damaged ferrule, nut, or fitting body should be replaced. For a quick fix, incremental tightening can stop small leaks until a proper repair can be scheduled. If leakage continues, re-cut the tube end, replace damaged parts, and reassemble the fitting.
Dealing with corrosion and galling calls for corrective repair and preventive material selection. Corrosion can pit sealing faces and cause repeat leaks. Galling can lock nuts and bodies, making them difficult to remove. For stuck nuts, apply penetrating oil and allow time for it to soak in. If threads or faces are damaged, replace the affected components.
Correct material selection helps prevent corrosion, galling, and premature failure. Do not pair carbon steel directly with copper if galvanic reaction is a concern. Select ferrules and fittings suitable for your system’s chemistry and temperature. In cleanroom or high-purity environments, volatile cleaning agents can increase galling risk; use ferrules designed to resist galling and compatible lubricants when allowed.
Stuck nut recovery usually starts with penetrating oil and careful patience. If the nut won’t budge, cutting and replacing the nut and ferrule may be faster than prolonged attempts. Use proper tools to avoid damaging the fitting body.
When a compression joint is not the right choice, consider alternatives. Systems exposed to constant vibration, long-term dynamic stress, or strict low-profile needs may benefit from soldering, mechanical crimp systems, flare fittings, or welded joints. When planning repairs or new installs, compare compression and soldering for permanence, profile, accessibility, and code requirements.
| Fault | Likely Cause | First Action | Longer-Term Correction |
|---|---|---|---|
| Minor seepage | Loose nut or poorly seated ferrule | Incremental tightening with two wrenches | Install new ferrule and nut and re-cut tube end |
| Ongoing leak despite tightening | Overtightening damage to ferrule or tubing | Remove damaged section and install new nut and ferrule | Use torque guideline and avoid overtightening |
| Seized ferrule or nut | Ferrule bite, seat deformation, or galling | Use penetrating oil, ferrule puller, or careful cutting | Use compatible materials that reduce galling |
| Corrosion or pitted seal | Galvanic reaction or aggressive fluids | Replace corroded parts | Choose correct materials and confirm code compliance |
| Leak under vibration | Movement or vibration loosens the joint | Monitor and secure lines to reduce movement | Use a joining method better suited to vibration |
Copper Tubing Compression Fittings Summary
In summary, Copper Tubing Compression Fittings provide a versatile, flame-free way to join copper tubing across many applications. They perform best when materials are compatible and proper installation methods are followed. Brass, copper, stainless steel, and some plastics can be compatible when galvanic corrosion and thermal mismatch are avoided.
Installation Parts Supply guidance emphasizes replacing ferrules during reassembly and tightening fittings according to manufacturer specifications. That practice helps maintain reliable sealing.
Compression fittings are useful for quick repairs, tight spaces, and joints that may need future service. They have limitations compared to soldered connections. Long-term performance relies on ferrule design, tubing quality, and correct assembly sequence.
For high-pressure or high-vibration systems, use ferrules rated for these conditions. When compression fittings are not suitable, consider soldering, brazing, crimping, flaring, or welding.
This summary stresses the importance of routine checks and careful installation. Ensure cuts are square and deburred. Use the sliding nut and ferrule correctly, add an insert where required, hand-tighten first, and finish with measured wrench turns.
Use manufacturer torque or turn-count guidance to avoid leaks, ferrule damage, and tube distortion. For parts and compatible ferrules, consult suppliers. Look for suppliers that carry 1/4 Compression T Fitting, 1/2 Compression T Fitting, and brass tee options suited to the project.
